TransformerModel Struct Reference

Main transformer model structure with unified memory layout. More...

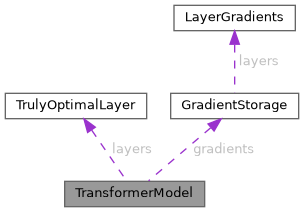

Collaboration diagram for TransformerModel:

Public Attributes
char	magic [8]
	Magic string "BUMPWGT2" for file validation.
uint32_t	version
	Weight file format version.
uint32_t	model_type
	Model architecture: 0=GPT2, 1=LLAMA, etc.
int	num_layers
	Number of transformer layers (e.g., 12 for GPT-2)
int	vocab_size
	Vocabulary size (e.g., 50257 for GPT-2)
int	embed_dim
	Embedding dimension (e.g., 768 for GPT-2 small)
int	context_window
	Maximum sequence length (e.g., 1024)
size_t	aligned_embed_dim
	embed_dim rounded up to 64-byte alignment (in floats)
size_t	aligned_head_dim
	head_dim rounded up to 64-byte alignment (in floats)
size_t	aligned_attn_context_window
	context_window padded to prevent false sharing
int	num_cores
	Number of CPU cores to use (OpenMP threads)
int	tokens_per_core
	Tokens assigned per core: context_window / num_cores.
int	num_attention_heads
	Number of attention heads (e.g., 12 for GPT-2)
int	head_dim
	Dimension per head: embed_dim / num_attention_heads.
float *	memory_base
	Base pointer to single contiguous memory block.
size_t	total_floats
	Total size of memory block in float elements.
size_t	layer_stride
	Byte offset between consecutive layer memory blocks.
size_t	token_emb_offset
	Token embedding table [vocab_size × aligned_embed_dim].
size_t	pos_emb_offset
	Positional embedding table [context_window × aligned_embed_dim].
size_t	embedded_input_offset
	Combined token+pos embeddings [context_window × aligned_embed_dim].
size_t	layers_start_offset
	Start of first transformer layer memory.
TrulyOptimalLayer *	layers
	Array of per-layer offset structures.
size_t	final_ln_weight_offset
	Final LayerNorm gamma [aligned_embed_dim].
size_t	final_ln_bias_offset
	Final LayerNorm beta [aligned_embed_dim].
size_t	final_ln_mean_offset
	Final LayerNorm mean [context_window].
size_t	final_ln_rstd_offset
	Final LayerNorm rstd [context_window].
size_t	final_output_offset
	Final normalized output [context_window × aligned_embed_dim].
size_t	lm_head_weight_offset
	Language model head (weight-tied to token_emb_offset)
size_t	logits_offset
	Output logits [context_window × vocab_size].
GradientStorage	gradients
	Gradient and activation cache memory (training only)
bool	training_enabled
	Whether gradient storage is allocated.
float	learning_rate
	SGD learning rate for weight updates.
int	lr_warmup_steps
	Number of steps to linearly warm up the LR.
float	lr_warmup_init
	Starting LR for warmup (defaults to 0 when unset)
float	grad_clip
	Clip gradients to +/- this value (0 disables)
size_t	training_cache_samples
	Number of training windows cached inside arena.
int	active_tokens
	Number of tokens populated in current forward pass.
TaskType	task_type
	Active training/inference task.
OptimizerType	optimizer
	Selected optimizer.
uint64_t	optimizer_step
	Number of optimization steps taken.
float	adam_beta1
float	adam_beta2
float	adam_eps
float	weight_decay
bool	ema_enabled
float	ema_decay
bool	optimizer_state_initialized
bool	seq_cls_enabled
int	seq_cls_num_classes
int	seq_cls_pooling
	0=final,1=cls,2=mean
size_t	seq_cls_weight_offset
size_t	seq_cls_bias_offset
bool	kv_cache_enabled
	Whether KV cache regions are allocated/used.
int	kv_cache_capacity
	Maximum tokens stored in cache.
int	kv_cache_tokens
	Number of valid tokens currently cached.
long *	training_data_buffer
	Pointer to in-memory buffer for the entire training dataset.
long	num_training_tokens
	Total number of tokens in the preloaded dataset.
uint8_t	checksum [32]
	SHA256 checksum of weight file.
uint8_t	reserved [32]
	Reserved for future extensions.

Detailed Description

Main transformer model structure with unified memory layout.

This structure encapsulates the entire transformer model state in a single contiguous memory block. All tensors (weights, activations, gradients) are accessed via byte offsets from memory_base.

Design Philosophy:

• Single malloc/mmap for entire model (eliminates fragmentation)
• Offset-based addressing (enables memory-mapped weight files)
• Cache-line aligned tensors (64-byte boundaries)
• Hugepage-backed allocation (2MB pages reduce TLB pressure)

Memory Layout:

┌─────────────────────────────────────────────────────────────┐
│ Token Embeddings [vocab_size × aligned_embed_dim]           │ ← Shared with lm_head
├─────────────────────────────────────────────────────────────┤
│ Positional Embeddings [context_window × aligned_embed_dim]  │
├─────────────────────────────────────────────────────────────┤
│ Layer 0 (weights + activations)                             │
│ Layer 1 (weights + activations)                             │
│ ...                                                          │
│ Layer N (weights + activations)                             │
├─────────────────────────────────────────────────────────────┤
│ Final LayerNorm                                              │
├─────────────────────────────────────────────────────────────┤
│ Logits [context_window × vocab_size]                        │
├─────────────────────────────────────────────────────────────┤
│ Gradient Storage (if training_enabled)                      │
└─────────────────────────────────────────────────────────────┘

Parallelism Model:

• Token-level parallelism: Context window divided among num_cores
• Each core processes tokens_per_core tokens independently
• Head-level parallelism: Attention heads processed independently

Alignment Guarantees:

• aligned_embed_dim: Padded to 64-byte boundary for AVX-512
• aligned_head_dim: Padded to 64-byte boundary (prevents false sharing)
• aligned_attn_context_window: Padded attention score matrix rows

See also

layout_transformer Memory layout computation

bump Offset-based allocation helper

---

The documentation for this struct was generated from the following file:

• main.c
